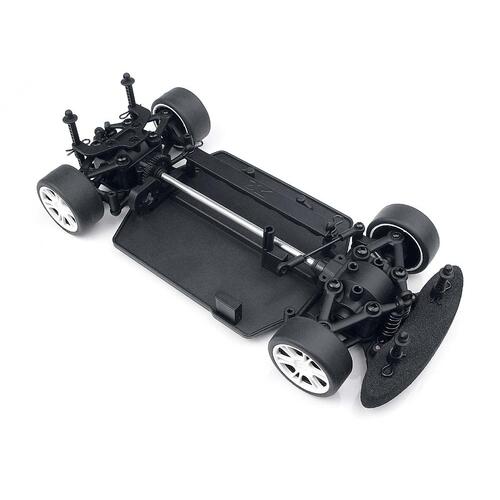

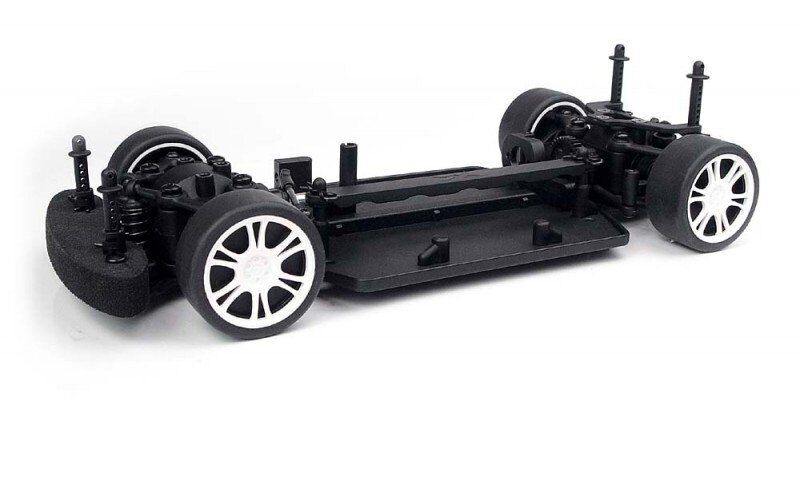

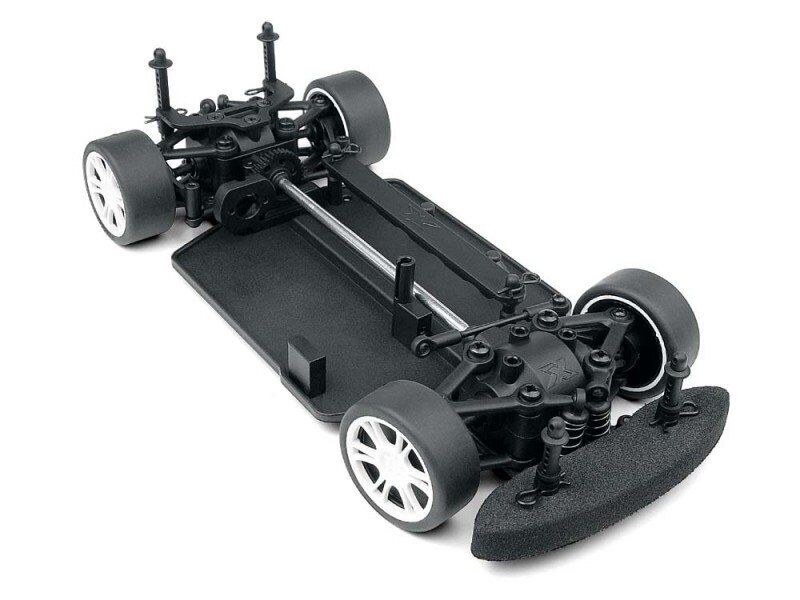

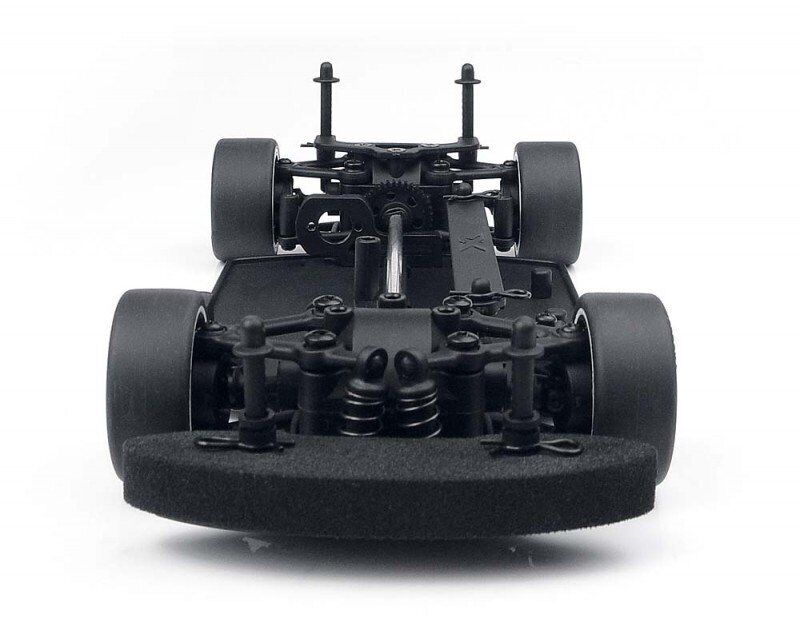

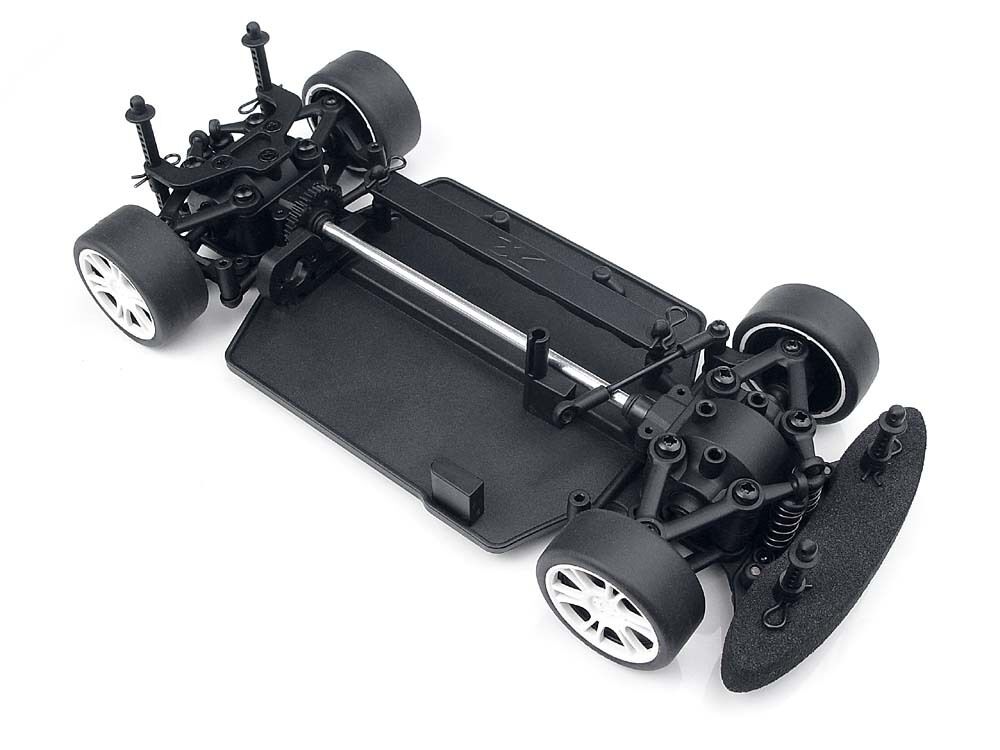

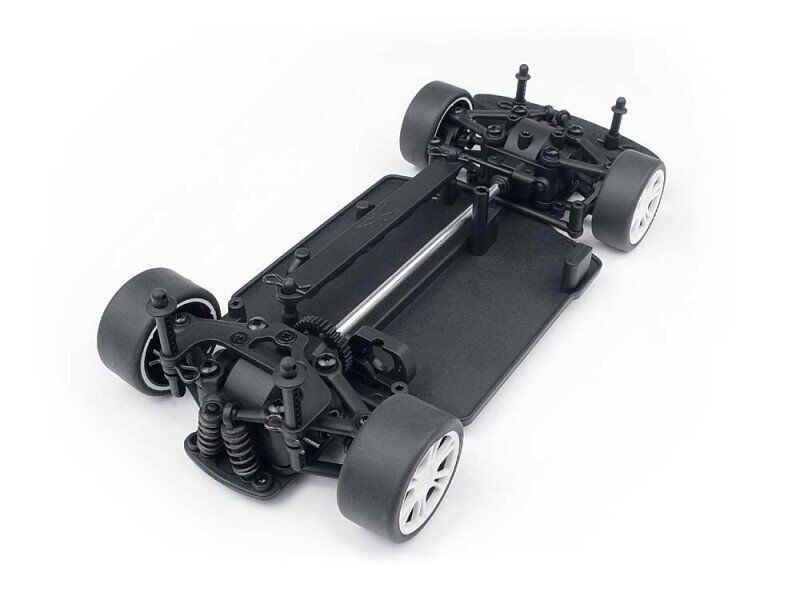

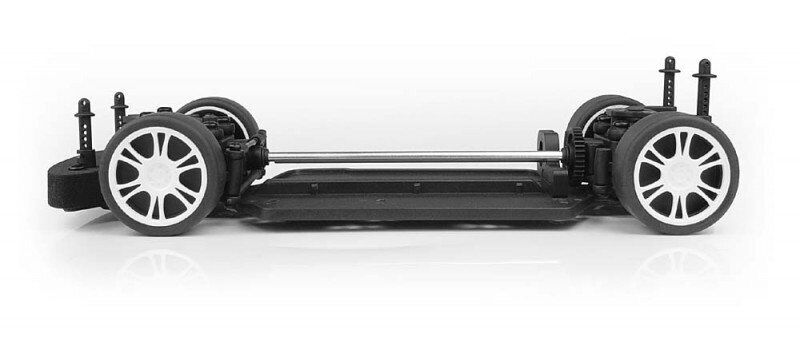

XRAY made 1/18 M18 4WD Shaft Drive Micro Car (380000) AWD drivetrain Electric Powered On-Road Touring Cars assembly kit

Dimensions

• Class: 1/18 electric micro car
• Front Width: adjustable 98~101 mm
• Rear Width: adjustable 104~107 mm
• Length: 215 mm
• Wheelbase: 149 mm
• Weight: 175 g
• Ready to run weight: 390 g

Chassis:

• Chassis: composite CAD-designed chassis
• Upper deck: composite center linkage
• Body: 150 mm micro body (included)

Drivetrain:

• Type: shaft-drive 4WD
• Drivetrain: aluminum main driveshaft
• Primary drive: pinion/spur
• Drive ratio: 1:2.5
• Drive shafts: composite front + rear
• Differentials: composite gear differentials, front differential adjustable
• Bearings: 16 high-speed ball-bearings

Suspension:

• Front: fully independent
• Rear: fully independent
• Dampening: friction-type coil-over shocks

Geometry:

• Camber: front/rear: -1 ° (preset)
• Caster: 12 ° (preset)
• Front Toe: toe-out 0.5 ° (preset) (adjustable option)
• Rear Toe: toe-in 4 ° (preset) (adjustable option)
• Downstops: adjustable front + rear
• Anti-roll bars: optional front
• Wheelbase: 149 mm

Others:

• Wheels: XRAY micro wheels, adjustable track-width
• Tires: 40SH front/rear (included)
• Instructions: full-color manual with 3D graphics
• Packing: carton box with 8 vinyl bags with parts
• Additionals included: certificate, parts list, decals, Hudy 3.0mm screwdriver, XRAY catalog

Not included: radio system (transmitter and receiver), steering servo, ESC, motor, battery pack (5 cell), battery charger
